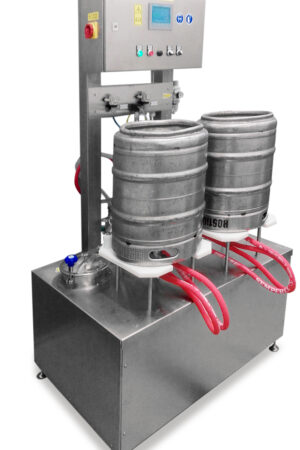

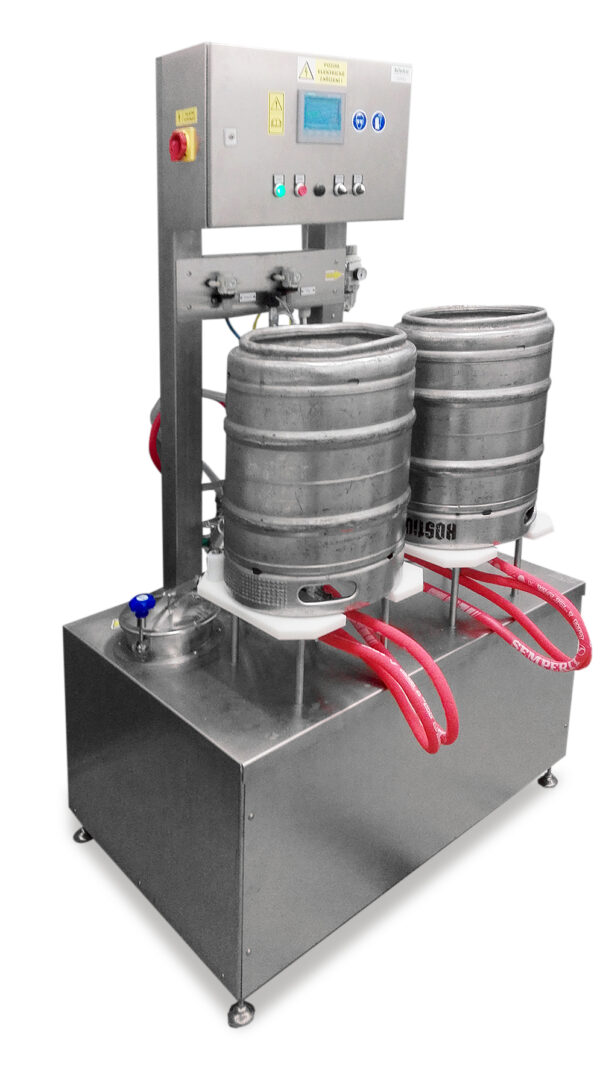

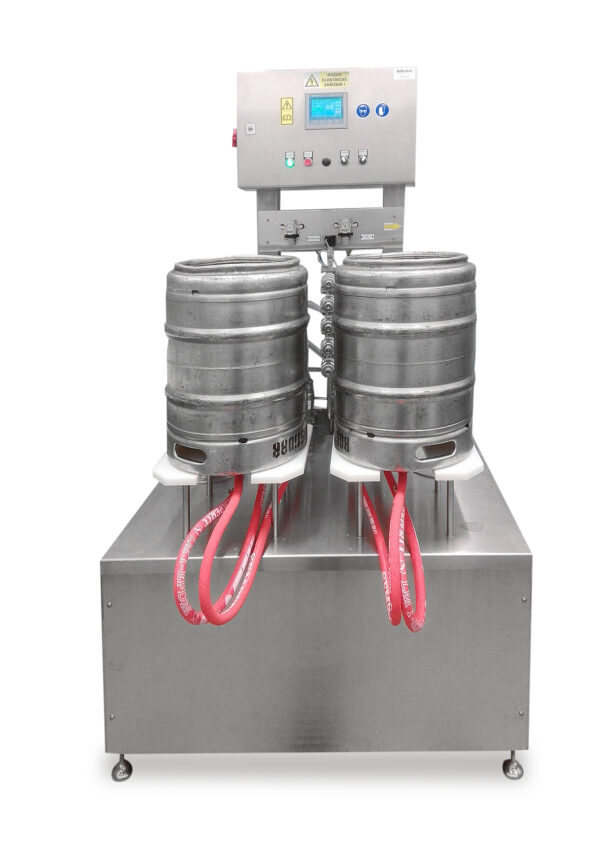

KEG washer MK3/2

2-position ‘tubular’ KEG dishwasher, power 30 to 40 KEG / hour

– cold water (hot on request)
– steam (optional)
– 1 detergent tank
– air
– CO2 or N2
– available for all types of knockers
– CE certification

Category:

Description

We produce a top-of-the-line 2-position semi-automatic KEG barrel washer. The machine itself drains and depressurises the drum, then rinses it, rinses it with washing solution, rinses it again, dried it, eventually steamed it and pressurized CO 2 or N 2. Everything is fully automatic, without the touch of a human hand. The operator only mounts / removes the drum. The machine itself monitors whether everything is working as it should and after the end of the wash cycle informs the operator by an acoustic signal. All washing parameters can be easily set using the touch screen. The machine performance is, depending on the equipment and settings, 30 to 40 KEG / hour.

Basic features:

Fully automatic cycle
All phases of the cycle are checked
Color information display
Manual functions
Statistics myti
Simple operation
Pressurizing CO2 or N2

    Medium
 Connection Consumption
  • Sterile air
- ½ inner - min. 5 Bar - cca 0,3 m³ / KEG
  • CO₂/N₂
- ½ inner - min. 1.5 Bar - cca 0,2 m³ / KEG
  • Cold water
- ½ inner - min. 3 Bar - cca 5 L / KEG
  • Hot water
- ½ inner - min. 3 Bar - cca 12 L / KEG
  • Sterile steam for steaming
- flange DN20 - cca. 2 Bar - cca 0,5 kg / KEG
  • Steam for heating
- flange DN20 - cca. 2 Bar - cca 0,4 kg / KEG
  • Chemically resistant pressure waste
- min. DN50
  • Electrical energy
-plug 400VAC / 32A TN-S
  • Electrical connection
- min. 6 mm²
